12*12mm Silicone Neon Flex

                  Parameters:

                    Possibility of bending upwards/downwards ( in the plane of light emission)

                   Segment length on the belt (divisibility): 50mm.

                    Dimensions: 12mm x 12mm x 5000mm(discount with a length of 5m, the price for 1m belt).

                   CCT: 3000k warm white, 4000-4500k natural white, 5000-5500k day light, 6000-7000k cold white.

                   Working voltage: 24V DC, Power: 9.6W/m (max: 10.6W); CRI color rendering index: >80Ra

                   Beam angle: 120°,  IP grade: ip67,  Anti-Surge: IK08, Lifetime: 36000hours, Warranty: 2 years

                Features:

                     Light source:  High light efficient SMD2835 (or 5050, 2735, 2110 and 4040) with LM80.

                   Process and material: high light transmission environment silicone material produced by extrusion technology.

                    Waterproof design: ip67/ip68 for outdoor decoration lighting projects.

                   Optical design: Unique light distribution design, evenly illuminated the entire surface of the belt without shadows

                    And darker places.

                    Appearance design: Compared with the traditional glass neon tube and PVC tube, the silicone material has good

                    Flexibility, simple and stylish unique apprearance.

                    Product certifications: UL, CE, RoHS.

                     Environmental properties: Resistance to saline solutions, acids and alkalis, Corrosive gases and UV.

                     Working temperature: Ta: -20 ~ 55℃, Storage temperature:  0℃ ~ 60℃.

                     2 years warranty, service life more than 36000hours

                   Application:

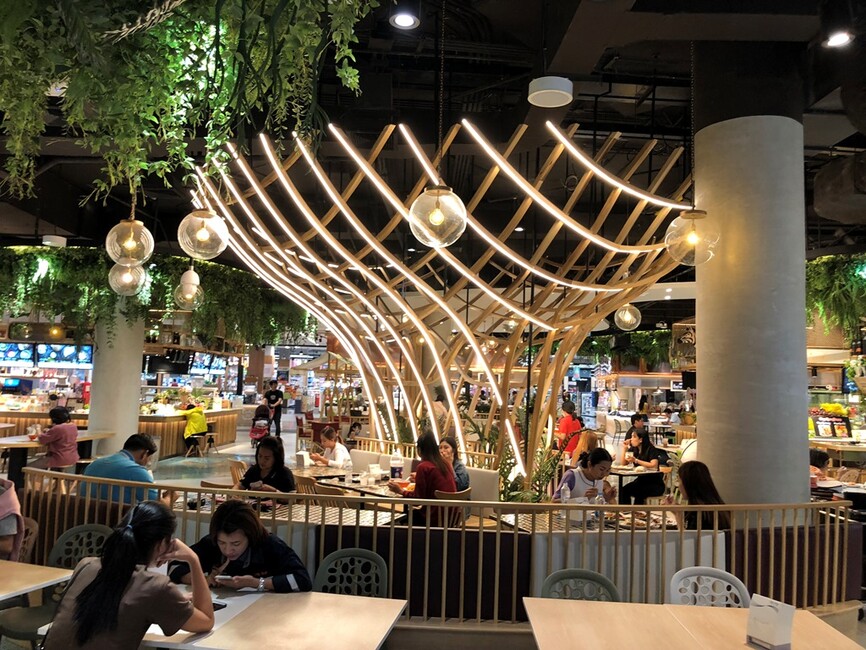

                           Light advertisement outdoor / indoor decoration lighting.

                           Architectural contour lighting.

                          Waterproof lighting.

                    Notifications:

                         Use an insulated 24V DC power supply to driver the LED strips, and constant voltage ripple at the power

                         Supply output must be less 5%.

                          It is not permitted to use RC voltage reduction sources or non-insluted power supply for Neon flex belt.

                            In practice, it is recommended to maintain a 20% power reserve (only 80% of the energy is used) to ensure

                         That sufficient power is available to operate the neon flex belt.

                         Pay attention to connection safety. To prevent electric shock, Do not touch AC power source after power up.

                         During installation, pay attention to the positive and negative poles of the wires and whether the power supply

                         Meets the required voltage to prevent damage.

                         Avoid scratching, deforming and irregularly bending the neon flex belt during installation. Otherwise, it may cause

                         Irreparable damage to the product.

                         Please do not bend the belt into an arc with a diameter of less than 60mm to ensure durability and reliability. too

                         Small a bending diameter will damage neon flex itself.

                          If the actual application length exceeds the specified (max.) length of the use, this will lead to overheating and uneven

                          Brightnees, or even damage to the LED strips.

                          To prevent eye damage, avoid looking directly at the glowing side of the LED strips for a long time.

                          Installation, disassembly and repair of the product is prohibited for persons who are not authorized and professionally

                          Trained for this purpose.

                           Do not use any acidic or alkaline adhesives to fix the neon flex belts.

                           This neon flex is not suitable for use in swimming pool and fountains.

                           Before the final installation, first check that the individual strips of different sizes shine with the same intensity and shade.

                              Slight differences in hue may occur at the same LED color temperature due to the structural differences in the material.

                            If IP68 protection for installation and application on the product, this degree of protection may degrade after spontaneous

                            Cutting and modification.
