Germicidal LED Troffer
Germicidal LED Troffer

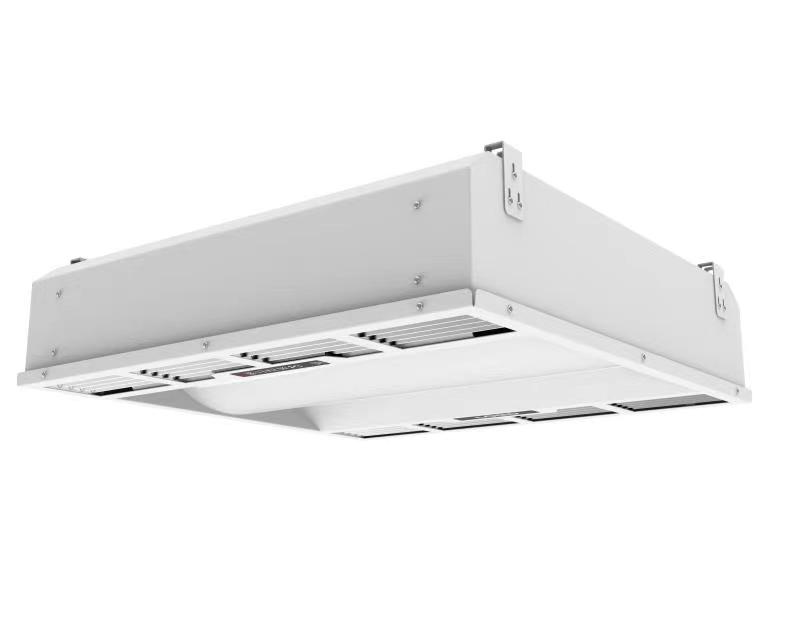

Air Purification UV-C Germicidal LED Troffer
Air purification circulation system:
Double sided fan inlet and outlet design, through the fan to quickly form air convect ion, accelerate the indoor air circulation,
And quickly extinguish bacteria disinfection. improve the efficiency of disinfection, HEPA filters 99.7% of particles ≥ 0.3 microns.
Advantages:
1. HEPA filters 99.70% of particles ≥ 0.3 microns.
2. Fan air convection speeds up air circulation.
3. The mirror surface aluminum increases the ultraviolet ray and the irradiation intensity.
4. With LED light 3 color temperature adjustment and dimming.
5. Enclosed UV-C light source, harmless for human.
U15.
Air purification UV-C disinfection panel light
UV-C Hybird Direct LED Linear. The host can inhale the polluted air, purify and disinfect, and then discharge it to achieve air disinfection.
Suitable for medical, industrial, office, toilet, and other public places.
Model | Power | Voltage | Wave | Lamp | Hold Time | CCT | LED Lumen | Lamp Size | Weight | Life Span | Color |
U15-01 | 135W UVC 50W LED 50W Other 30W | AC100-277v 50-60Hz |
254nm |
UVC |
1-9Hrs | 3000K 4000K 5000K | 4700Lm(5000K) 4800Lm(4000K) 4500Lm(3000K) | 595*5958142.8mm 603*603*142.8mm | N.W:12.5kg G.W:14.1kg |
UVC 1yea LED 3years | White |
