Product Description

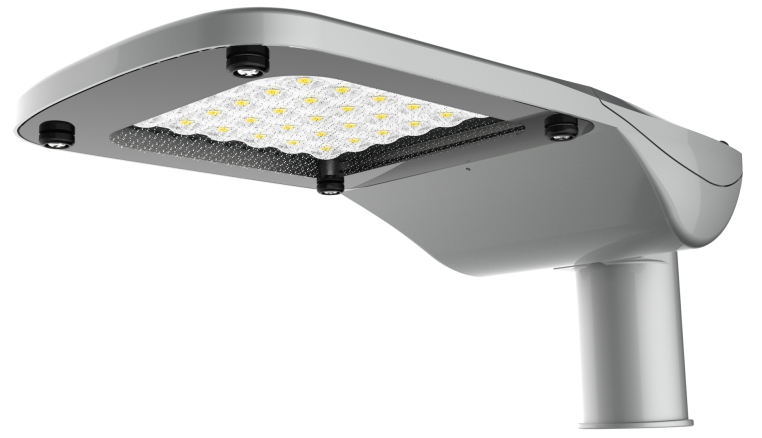

                                                 150W LED Street Light



Specifications:



Item Model ESL-40A ESL-60A ESL-80A ESL-100W ESL-120A ESL-150A
General
Performance
 Power 40W 60W 80W 100W 120W 150W
Lumen Output 5200lm 7800lm 10400lm 13000lm 15600lm 19500lm
Efficacy 130lm/W 130lm/W 130lm/W 130lm/W 130lm/W 130lm/W
Color
Temperature 		3000K/4000K
5000K/5700K 		3000K/4000K
5000K/5700K 		3000K/4000K
5000K/5700K 		3000K/4000K
5000K/5700K 		3000K/4000K
5000K/5700K 		3000K/4000K
5000K/5700K
LED Type SMD 3030 SMD 3030 SMD 3030 SMD 3030 SMD 3030 SMD 3030
CRI 80+ 80+ 80+ 80+ 80+ 80+
Eletrical
 PF >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
Input Voltage 100-277VAC
50/60Hz 		100-277VAC
50/60Hz 		100-277VAC
50/60Hz 		100-277VAC
50/60Hz 		100-277VAC
50/60Hz 		100-277VAC
50/60Hz
THD <20% <20% <20% <20% <20% <20%
Beam Angle T2/T3/T4/T5 T2/T3/T4/T5 T2/T3/T4/T5 T2/T3/T4/T5 T2/T3/T4/T5 T2/T3/T4/T5
Physical
 Weight 3.2Kg 3.2Kg 4.0Kg 4.0Kg 4.8Kg 4.8Kg
Dimension(mm) 560*195.6*98.5 560*195.6*98.5 610*245*98.5 610*245*98.5 660*245*98.5 660*245*98.5
Housing  Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum
Cover Glass & PC Glass & PC Glass & PC Glass & PC Glass & PC Glass & PC
Mounting Size 60mm 60mm 60mm 60mm 60mm 60mm
Operation Temp -35℃~55℃
 -35℃~55℃
 -35℃~55℃
 -35℃~55℃
 -35℃~55℃
 -35℃~55℃
Finish Silver/Black/Bronze Silver/Black/Bronze Silver/Black/Bronze Silver/Black/Bronze Silver/Black/Bronze Silver/Black/Bronze
IP/IK  IP65/IK08
 IP65/IK08
 IP65/IK08
 IP65/IK08
 IP65/IK08
 IP65/IK08
Certificate
 SAA, CE, RoHS SAA, CE, RoHS SAA, CE, RoHS SAA, CE, RoHS SAA, CE, RoHS SAA, CE, RoHS SAA, CE, RoHS
ETL 5010635 5010635 5010635 5010635 5010635 5010635
Material Usage RoHS RoHS RoHS RoHS RoHS RoHS
Driver Class  Class II Class II Class II Class II Class II Class II
LED Lifespan 50,000hrs 50,000hrs 50,000hrs 50,000hrs 50,000hrs 50,000hrs













Features:



1), Universal Voltage AC100-277V, 50/60Hz;

2), Using high quality Luxeon SMD 3030 chips, 130lm/W;

3), Constant current power supply, Meanwell, Lifud, Sosen Driver Available;

4), Constructed from die-cast aluminum, with a PC & Glass cover, and rated at IP65;

5), Respirator design: Balance the different pressure between the atmosphere and shell, It is waterproof also defog,

and avoiding the drop condensation, extent the product lifespan.

6), High power PF>0.9, Low THD driver;

7), ETL, SAA, CE, RoHS certificates, 5 years warranty;

8), Available with Photocell & Motion sensor.

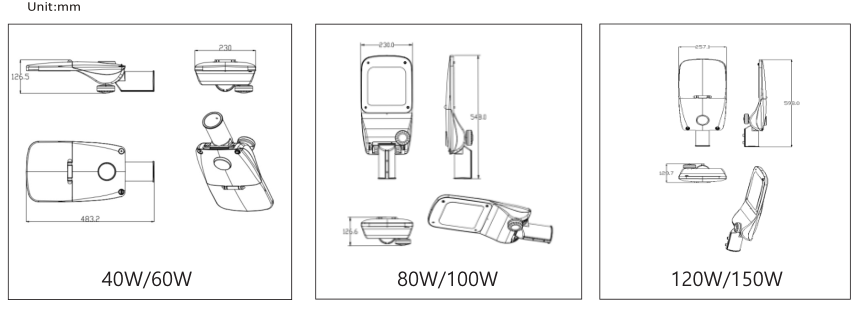

Drawing:







Chip Temperature Test:

Great heat dissipation performance, good for LED lifespan.

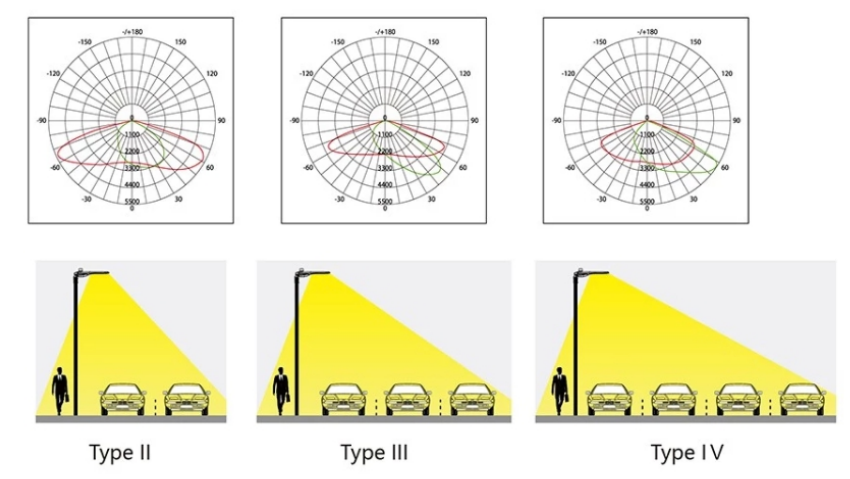

Distribution Curve:






Installation Instruction:


1), LED street light can also be mounted to any Horizontal Pole.

Prepare LED street, Put the pole into the Bracket, Screw the bolt on the Bracket, Adjust the beam angle follow your needs.

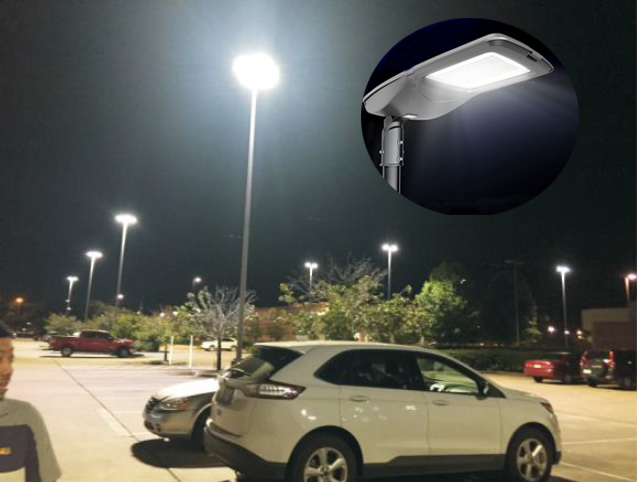

2), LED Parking Lot Light can also be mounted to any Vertical Pole.

Prepare LED street, Put the pole into the Bracket, Screw the bolt on the Bracket, Adjust the beam angle follow your needs.

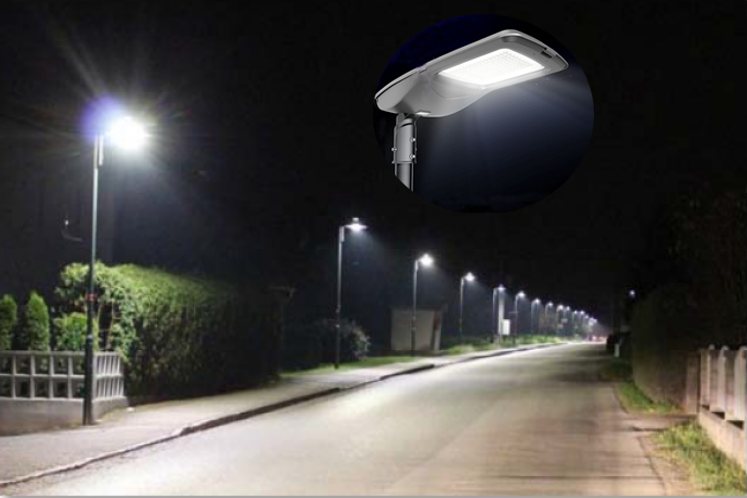

Application:

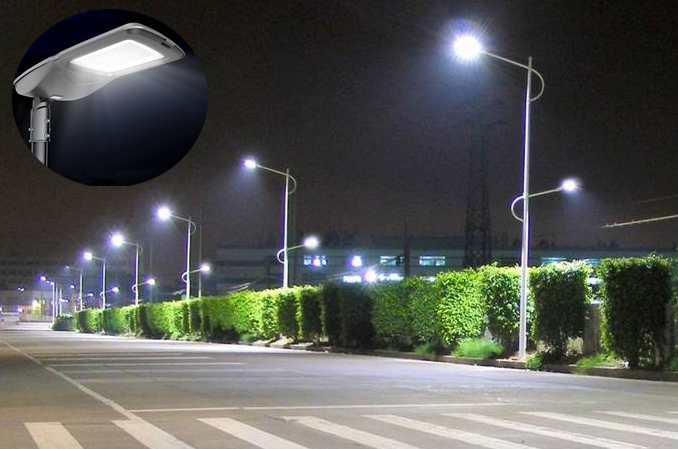

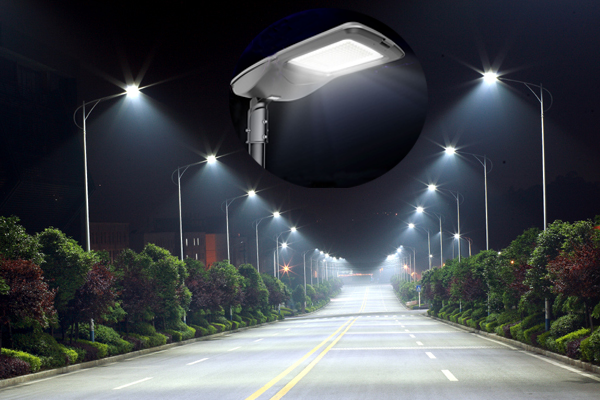

LED street lights transform the way cities, and municipalities light, large walkways, parks, residential street and highways.
