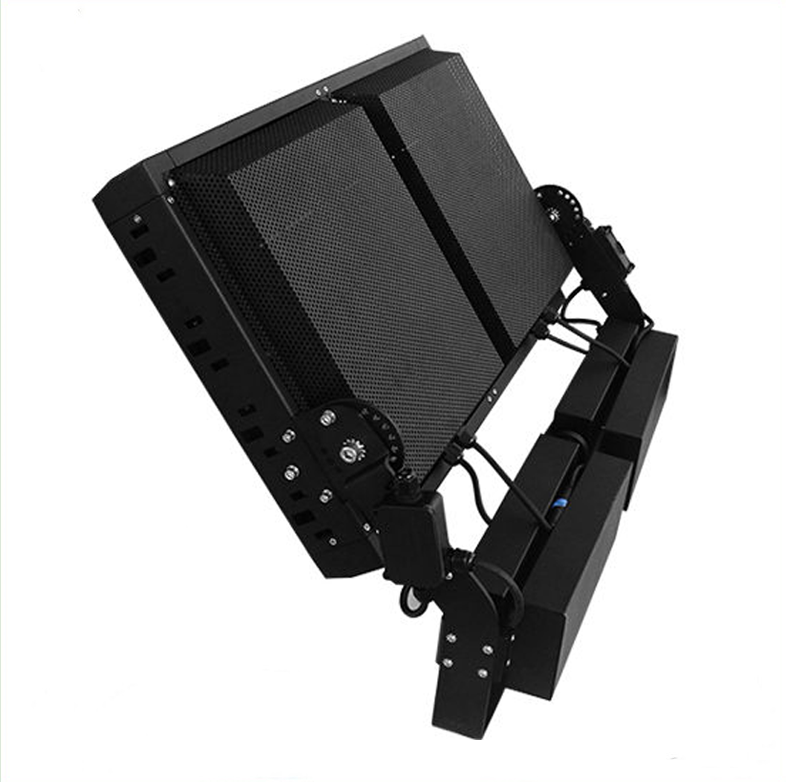

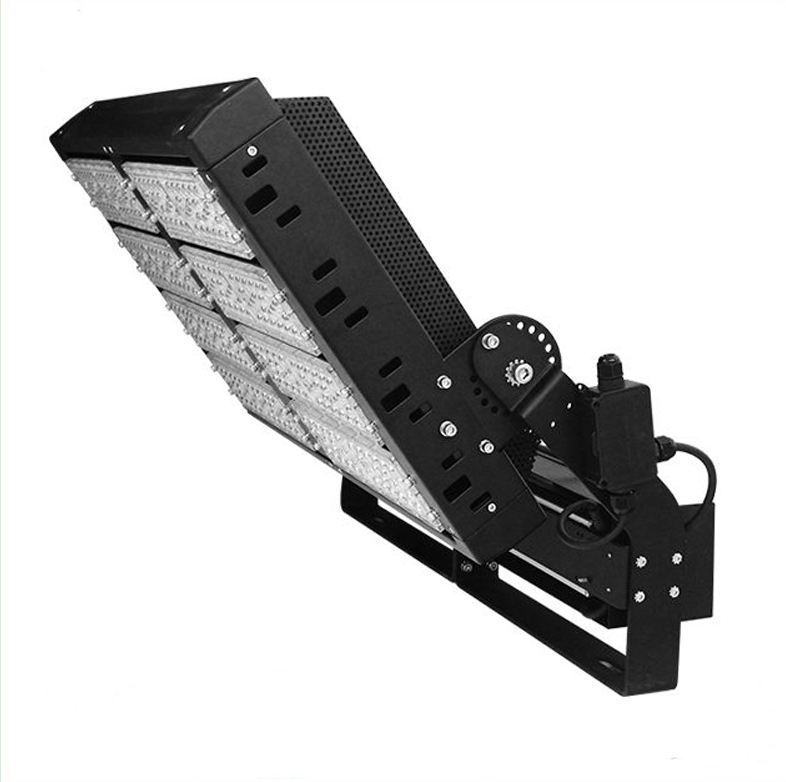

800W LED High Mast Light

Product Description:

Replace 600W HPS by 300W LED, Save 80% on electricity bill of lighting.

Provides even and bright illumination across 120 degree wide beam angle.

Waterproof IP65 for outdoor and indoor application.

AC85-265V, 50/60Hz Brown is fire wire, blue is common wire, yellow is ground wire. Plug not included.

Aluminum made heatsink, Low heat dissipation, no UV or IR light radiation.

Extremely 50,000 hours long life reduces re-lamp frequency. Save labor cost to replace bulbs with short lifespan.

Fixtures come with a yoke-style arm can be positioned in almost any beam and a variety of application settings.

Applications for Stadium, Basketball field, Tennis court, Football Field, Parking lot area, Dock and other places where flood lighting are needed.

Model No	TSML-800A
Materials	AL+SPCC+PC
Input Voltage	AC100-277V, 50/60Hz
Power	800W
LED Type	LUXEON 5050
Driver Type	Meanwell HLG / Sosen
Luminous Flux	140-160lm/
Color Temperature	2700-7000K
CRI	Ra>80
Beam Angle	25°/40°/60°/55*140°
PF	>0.9
IP Rate	IP65
Lifespan	50,000 ~80,000 hours
Certificates	ETL, CE, SAA. RoHS
Warranty	7 years

Item No	TSML-300A	TSML400A	TSML-500A	TSML-600A	TSML-800A	TSML-1000A
Power	300W	400W	500W	600W	800W	1000W
Input Voltage	AC100-277V, 50/60Hz	AC100-277V, 50/60Hz	AC100-277V, 50/60Hz	AC100-277V,50/60Hz	AC100-277V,50/60Hz	AC100-277V, 50/60Hz
LED Chip	LUXEON 5050	LUXEON 5050	LUXEON 5050	LUXEON 5050	LUXEON 5050	LUXEON 5050
Material	AL+SPCC+PC	AL+SPCC+PC	AL+SPCC+PC	AL+SPCC+PC	AL+SPCC+PC	AL+SPCC+PC
Driver	MEANWELL	MEANWELL	MEANWELL	MEANWELL	MEANWELL	MEANWELL
Luminous	48000lm	72000lm	80000lm	96000lm	128000lm	160000lm
CCT	2700K-7000K	2700K-7000K	2700K-7000K	2700-7000K	2700K-7000K	2700-7000K
CRI(Ra)	80+	80+	80+	80+	80+	80+
Operation Temp	-35℃~55℃	-35℃~55℃	-35℃~55℃	-35℃~55℃	-35℃~55℃	-35℃~55℃
IP Rating	IP65	IP65	IP65	IP65	IP65	IP65
PF	>0.9	>0.9	>0.9	>0.9	>0.9	>0.9
Product Size	516388209mm	608418209mm	700418209mm	754516209mm	754608209mm	754700209mm
Packaging Size	600480230mm	690480230mm	750480230mm	780480230mm	815690230mm	815780230mm
N.W	11.2Kg	13.8Kg	16Kg	19Kg	23.8Kg	29Kg
G.W	12.9Kg	16Kg	18.2Kg	22.8Kg	26Kg	32Kg
Warranty	7 years	7 years	7 years	7 years	7 years	7 years
Certificate	ETL, CE, RoHS	ETL, CE, RoHS	ETL, CE, RoHS	ETL, CE, RoHS	ETL, CE, RoHS	ETL, CE, RoHS

Lens Design:

Intensity Distribution Curve:

Installation:

Applications:

Super high lumen LED mast lights are widely used for Stadium, Tennis Court, Soccer Field, Basketball Field, Airport, Sea Port, Duck,

Highway and other places where LED high lumen needs.
